Our bunk style pontoon trailers provide the best support for your pontoons. Their wide axles give you the stability you want for cornering.

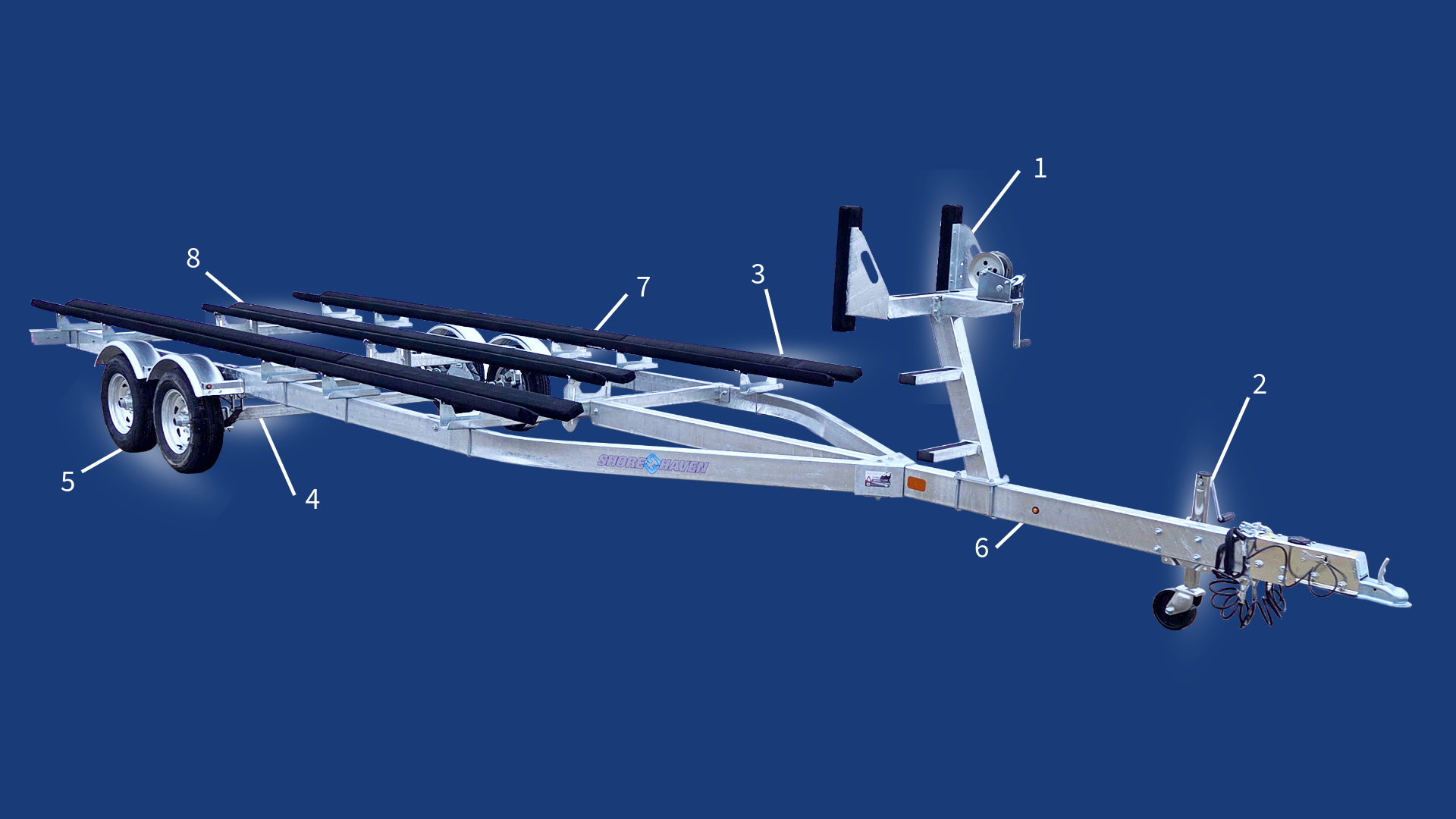

SP2648TG-B Model Shown
(Pictured)
Galvanized 3 Step Ladder with grab handle Included. Winch mounts to Ladder and Bow Stop to make full unit. Base mounts to tongue via U bolts.
RAM swivel tongue jack 1200lb support lift capacity. 1/2" Pull Pin allows you to swivel the jack horizontally when towing. 6' Poly caster wheel. 10" of travel distance.
Woven black marine carpet on 2" x 4" pine wood.
Rainer ST Radial Tires on 12" steel or 13" Galvanized Rims. Tredit Advantage Roadside Assistance Covered
Idler, Drum, & Disc Brake applications.
Powered by Optronics LED Lifetime Warranty Lights. Plug and play wiring allows easy replacements when needed.
Each bunk bracket is secured with a U Bolt that can be removed and adjusted. Winged top attaches to bunks by self tapping screws.
(Pictured)
Retractable 2" Tie downs mounted onto predrilled tube frame.
Side Mounted Spare Tire Carrier bolt on application. U Bolt option also available
Galvanized Tritube brackets with connecting adjustable bunk bracket. Kit mounts to predrilled holes in cross members.
(not Pictured)
7' carpeted bunk attached to 4 upright posts between tubes.
Wide front Bow stop with long curved handle. Wide Top Step Platform.
Bolt on Fold Away Swing Tongue Bracket installed.
Durable seamless bunk wrapping giving extra protection to your Pontoons tunes.
Model | Axles / Brakes | Tube Length | Overall Length | Carrying Capacity | Trailer Weight | Pontoon Width | Tire Size |
---|---|---|---|---|---|---|---|
SP2023G | 1/0 | 18-20 | 25' | 2240 | 750 | 8'-8'6" | 145/R12E |
SP2040TG | 2/0 | 18-20 | 25' | 4080 | 920 | 8'-8'6" | 145/R12E |
SP2041TG | 2/0 | 18-20 | 25' | 4080 | 920 | 8'-8'6" | 175/R13 galv |
SP2223G | 1/0 | 20-22 | 27' | 2240 | 780 | 8'-8'6" | 145/R12E |
SP2240TG | 2/0 | 20-22 | 27' | 4050 | 950 | 8'-8'6" | 145/R12E |
SP2241TG | 2/0 | 20-22 | 27' | 4050 | 950 | 8'-8'6" | 175/R13 galv |
SP2248TG | 2/1 Drum | 20-22 | 27' | 4955 | 1045 | 8'-8'6" | 145/R12E |
SP2249TG | 2/1 Disc | 20-22 | 27' | 4955 | 1045 | 8'-8'6" | 175/R13 galv |
SP2440TG | 2/0 | 22-24 | 29' | 4010 | 990 | 8'-8'6" | 145/R12E |
SP2441TG | 2/0 | 22-24 | 29' | 4010 | 990 | 8'-8'6" | 175/R13 galv |
SP2448TG | 2/1 Drum | 22-24 | 29' | 4925 | 1075 | 8'-8'6" | 145/R12E |
SP2449TG | 2/1 Disc | 22-24 | 29' | 4925 | 1075 | 8'-8'6" | 175/R13 galv |
SP2648TG | 2/1 Drum | 24-26 | 31' | 4895 | 1105 | 8'-8'6" | 145/R12E |
SP2649TG | 2/1 Disc | 24-26 | 31' | 4895 | 1105 | 8'-8'6" | 175/R13 galv |
* 145/R12E - Radial Tire, Silver E-Coat Wheel 175/R13D - Radial Tire, Galvanized Wheel 185/R13D - Radial Tire, Aluminum Wheel
