SPD Series Pontoon Trailers
Our bunk style pontoon trailers provide the best support for your pontoons. Their wide axles give you the stability you want for cornering.

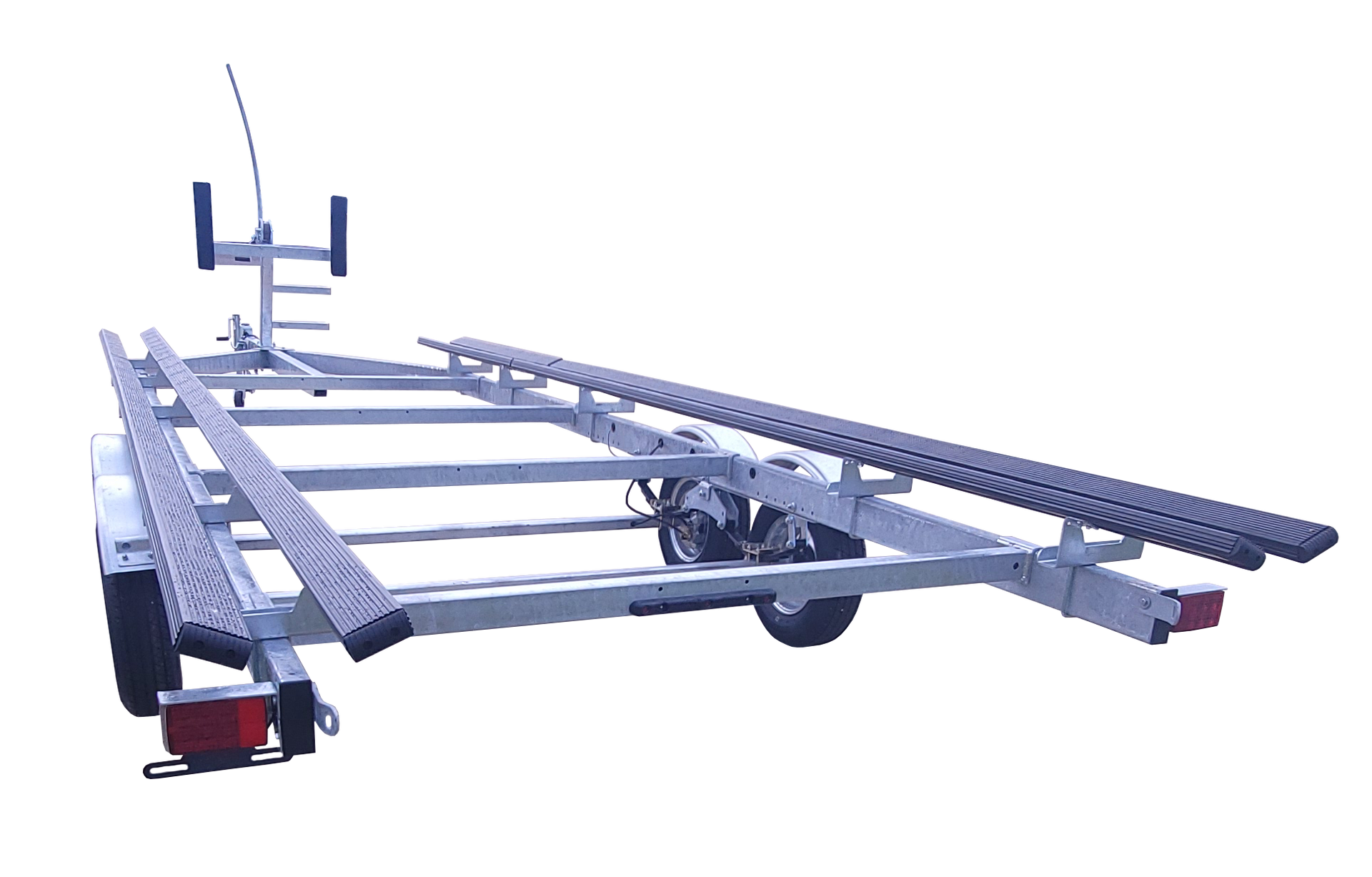

SPD2449TG Model Shown
SPD Series Pontoon Trailers
Trailer Sizes 20'-26'
Fits Overall Length Pontoon Sizes 25'-31'
Standard Features
(Pictured)
1. Winch Stand Handle
Long Curved Winch Stand Handle attached to winch stand.

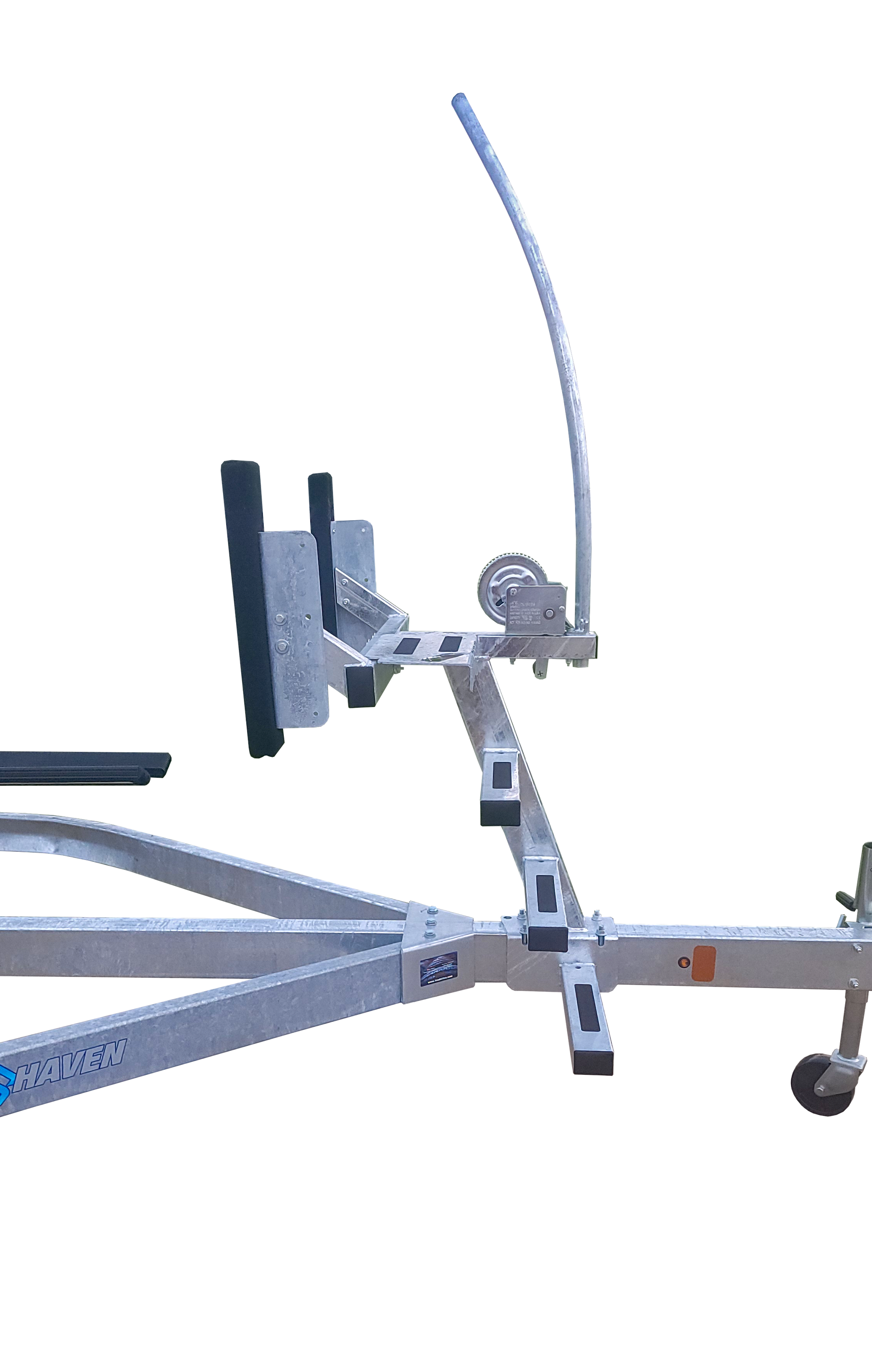

2.Deluxe Winch Stand
Wide Bow Stop connected to 4 Step Ladder with low first step. Top step on stand platform and mounting spot for winch.
3. Metal Fenders
Galvanized Steel fenders bolt onto trailer spring hanger mounts.

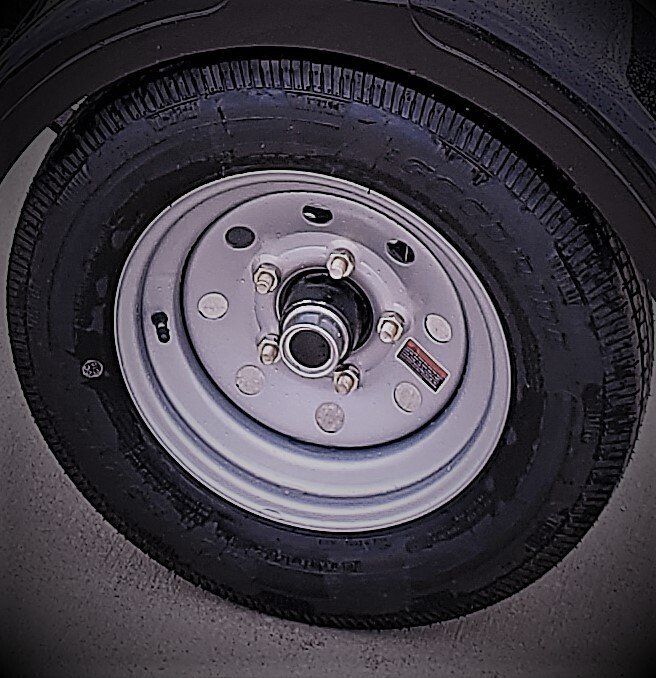

4. Tredit Advantage Tires
Rainer ST Radial Tires on 12" steel or 13" Galvanized Rims. Tredit Advantage Roadside Assistance Covered

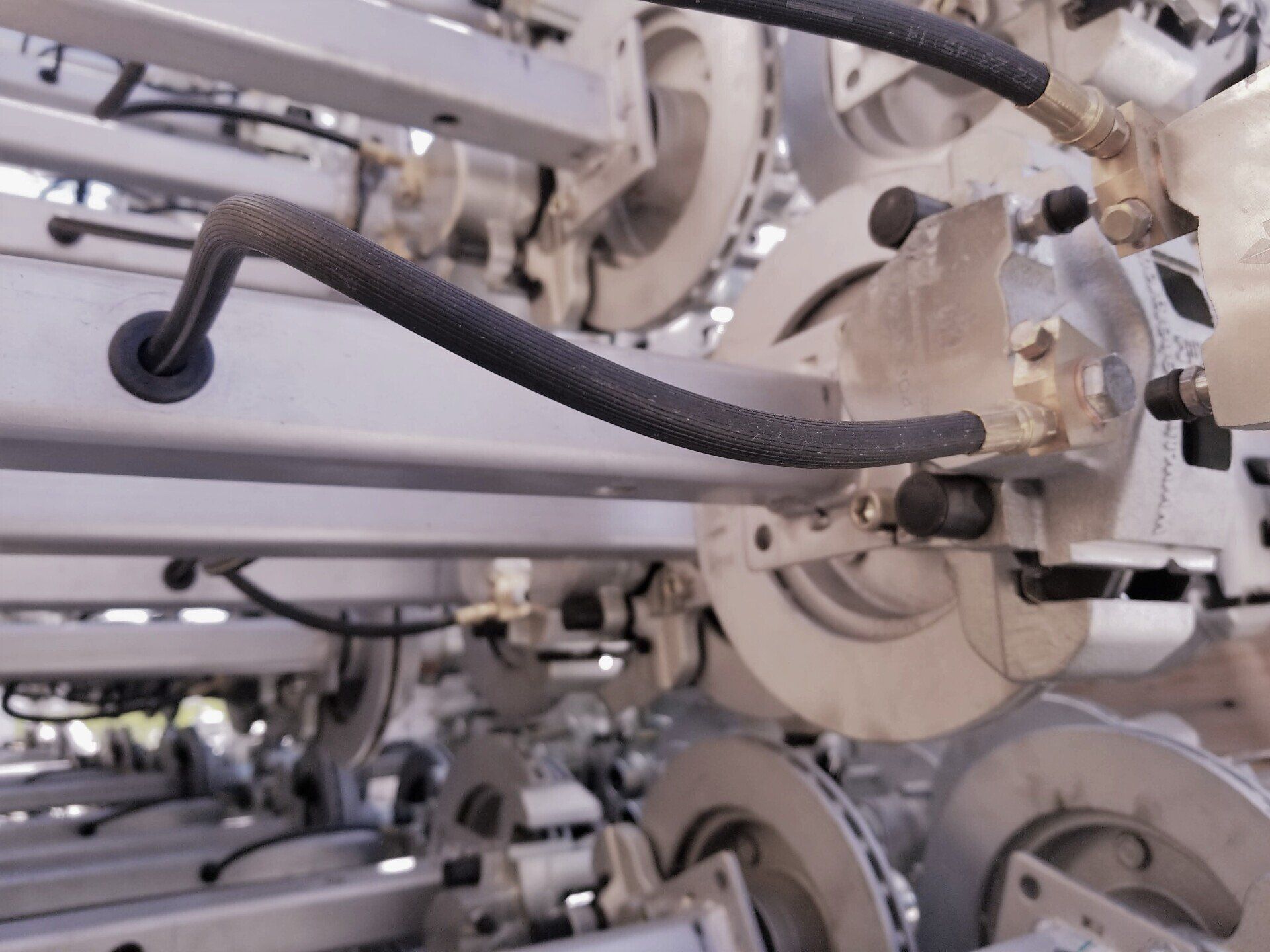

5. Galvanized Axles
Idler or Disc Brake Applications

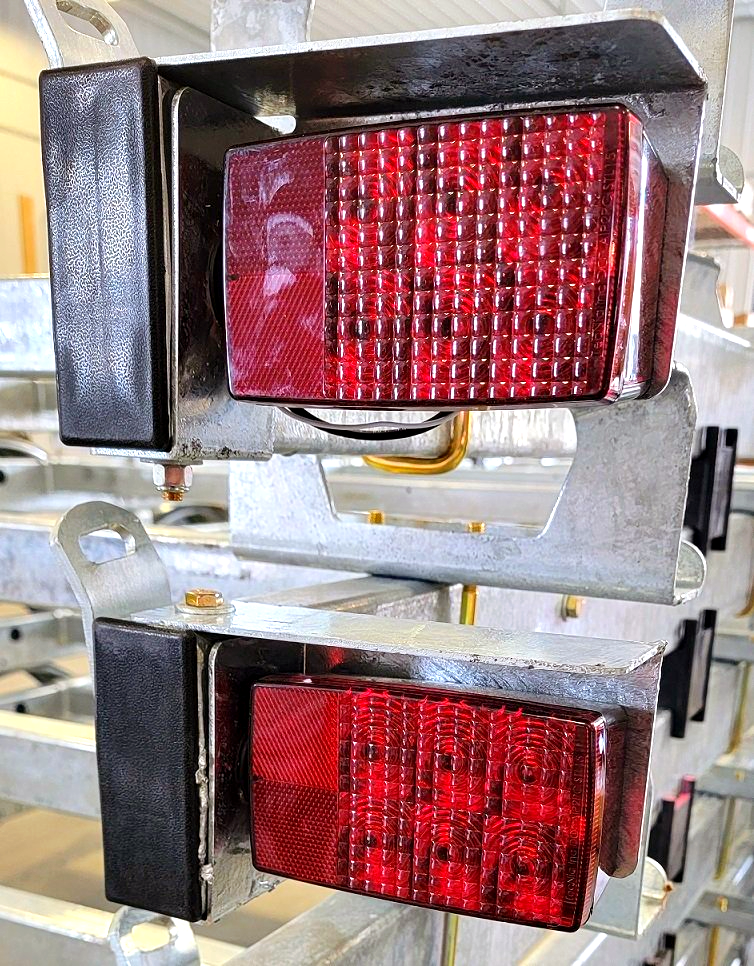

6. All LED Lighting
Powered by Optronics LED Lifetime Warranty Lights. Plug and play wiring allows easy replacements when needed.
7. Poly Wrapped Bunks
Powered by Optronics LED Lifetime Warranty Lights. Plug and play wiring allows easy replacements when needed.
8. Galvanized Bunk Brackets
Each bunk bracket is secured with a U Bolt that can be removed and adjusted. Winged top attaches to bunks by self tapping screws.
8. Galvanized Bunk Brackets
Each bunk bracket is secured with a U Bolt that can be removed and adjusted. Winged top attaches to bunks by self tapping screws.
9. Tongue Jack
1200lb Swivel Jack Standard on Single Axles, Drop leg Pad jack Standard on Tandem Trailers.
10. Center Tube Support
Galvanized Tritube brackets with connecting adjustable bunk bracket. Kit mounts to predrilled holes in cross members.
1. Load Guides
7' carpeted bunk attached to 4 upright posts between tubes.
2. Swing Tongue
Bolt on Fold Away Swing Tongue Bracket installed.
3. Retractable Tie Downs
Bolt on Retractable Tie Downs 2" Mounts to rear bracket or predrilled hole in frame rail.
4. Aluminum Wheel Upgrade
185R13D Tredit Aluminum
Models & Specifications
| Model | Axles / Brakes | Tube Length | Overall Length | Carrying Capacity | Trailer Weight | Pontoon Width | Tire Size | PDF Download |
|---|---|---|---|---|---|---|---|---|
| SPD2023G | 1/0 | 18-20 | 25' | 2240 | 750 | 8'-8'6" | 145/R12E | |
| SPD2041TG | 2/0 | 18-20 | 25' | 4080 | 920 | 8'-8'6" | 175/R13 galv | 🖨️ |
| SPD2223G | 1/0 | 20-22 | 27' | 2240 | 780 | 8'-8'6" | 145/R12E | |
| SPD2241TG | 2/0 | 20-22 | 27' | 4050 | 950 | 8'-8'6" | 175/R13 galv | |
| SPD2249TG | 2/1 Disc | 20-22 | 27' | 4955 | 1045 | 8'-8'6" | 175/R13 galv | 🖨️ |
| SPD2255TG | 2/1 Disc | 20-22 | 27' | 5555 | 1045 | 8'-8'6" | 185/R13D alum | 🖨️ |
| SPD2441TG | 2/0 | 22-24 | 29' | 4010 | 990 | 8'-8'6" | 175/R13 galv | |
| SPD2449TG | 2/1 Disc | 22-24 | 29' | 4925 | 1075 | 8'-8'6" | 175/R13 galv | 🖨️ |
| SPD2455TG | 2/1 Disc | 22-24 | 29' | 5525 | 1075 | 8'-8'6" | 185/R13D alum | |
| SPD2649TG | 2/1 Disc | 24-26 | 31' | 4895 | 1105 | 8'-8'6" | 175/R13 galv | |
| SPD2655TG | 2/1 Disc | 24-26 | 31' | 5495 | 1105 | 8'-8'6" | 185/R13D alum | 🖨️ |
* 145/R12E - Radial Tire, Silver E-Coat Wheel 175/R13D - Radial Tire, Galvanized Wheel 185/R13D - Radial Tire, Aluminum Wheel
** 2nd Axle Brakes Optional
Custom Fit
Adjustable axles, bunks and winch stand emable a custom fit and better towing experience.
Galvanized Frame and Components
Extremely durable for years of attractive, lasting protection.
Built-In Ladder
Conveniently access the bow with extra-wide steps and oversized handrail.
